CHARACTERISTICS

BSD7500 metallic pipes are composed of an inner tube of corrugated stainless steel with parallel spirals and reinforcements of one or two metallic meshes of braided wires. The qualities of the stainless steels are AISI 321 or AISI 316L for the inner tube and AISI 304 for the reinforcement meshes in general and particularly for special applications in AISI 316L.

The main qualities of the BSD7500 flexible pipes compared to hydraulic and industrial rubber hoses are:

  • Flexibility
  • The wide range of temperatures they can withstand from -270ºC to +800ºC
  • Chemical resistance to most aggressive and hazardous fluids
  • We offer inner diameters from ¼” (6 mm) to 10″ (250 mm) and working pressures, depending on diameters and temperatures up to 200 bar
CONNECTIONS

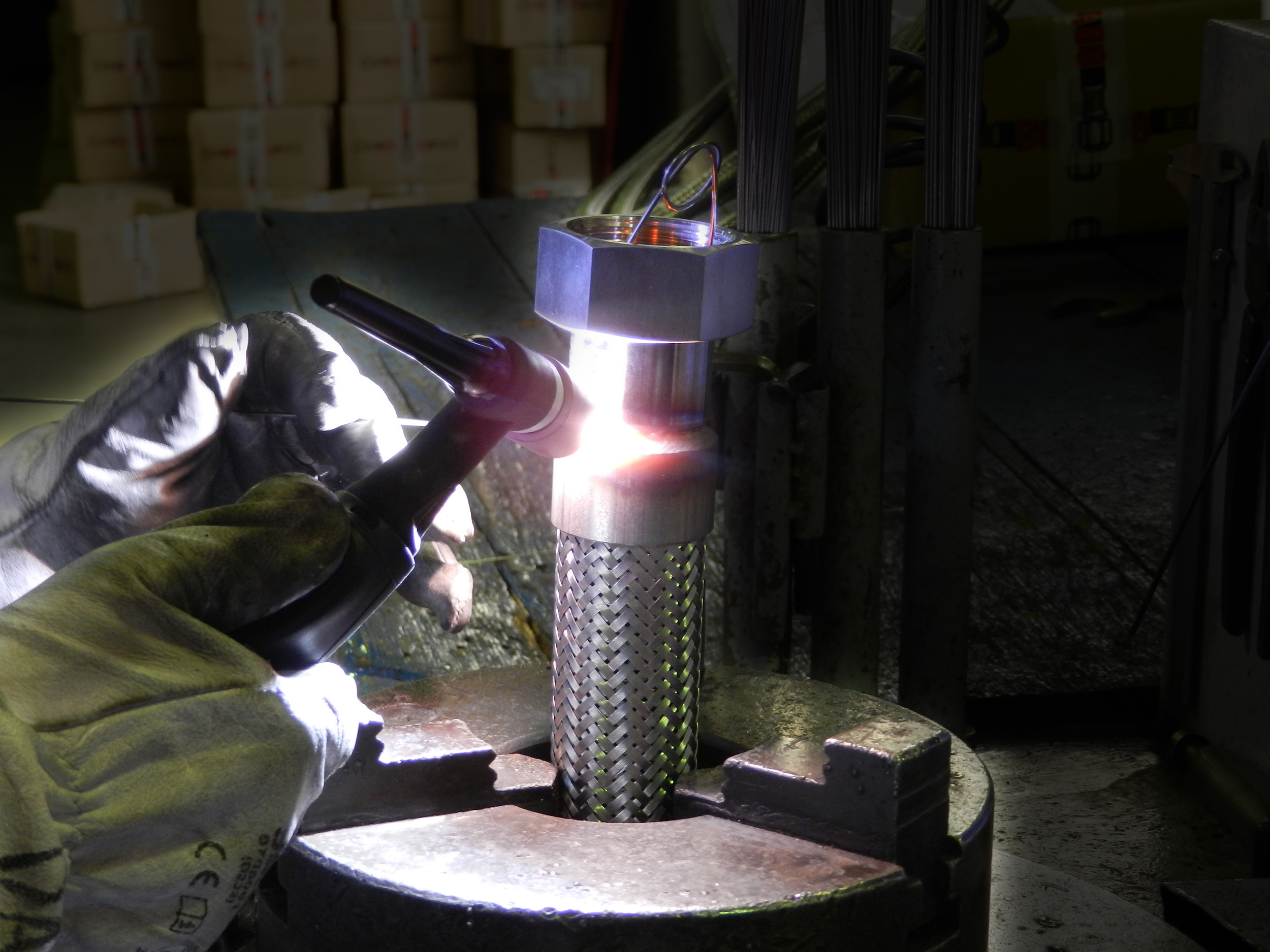

We manufacture fittings in different types of shapes and threads, both hydraulic and industrial types or according to the drawings received from our customers. The materials of the fittings can be made of carbon steel, stainless steel, bronze, brass, nickel, etc.

GALLERY
